Once you turn off the correct breaker, mark it with tape to make sure a “helpful” person doesn’t accidentally flip it back on while you’re still working. It helps to have an assistant and cell phones during this phase. Then, you simply turn off the breakers one by one until the light or radio goes off. If the circuit breakers aren’t labeled, you can find the right one by plugging a light or clock radio into the receptacle you are updating.
GFCI receptacle – The LOAD terminals are only used if you are passing power through the GFCI to protect additional receptacles downstream. As shown below, you simply wire the ground connection and then connect both the hot and neutral wires to the GFCI’s LINE terminals as indicated to complete the replacement. This should go without saying but always cut power to the circuit (and verify with a circuit tester) before replacing an outlet. You can always replace a standard receptacle with a GFCI receptacle. Method 1: Simple Replacement of a Traditional Receptacle Since water conducts electricity, ground faults are especially common in areas where water can provide a conduit for electricity to “escape” and find an alternate path to the ground. If your body provides a path to the ground for this leakage, you could be injured, burned, severely shocked, or electrocuted. A ground fault occurs when current is “leaking” and escaping to the ground.
What is a Ground Fault?Ī “ground fault” represents any electric path between a source of current and a grounded surface.
20amp gfci outlet how to#
You should understand the basics of how to correctly add a new GFCI outlet or replace an existing outlet with a GFCI. We asked our Pros to help us show new hires or even DIYers how to do it properly. Back and side wire capable.Wiring a GFCI outlet may vary slightly from manufacturer to manufacturer, but for the most part, they follow the same general principles.
20amp gfci outlet install#
Install in your bathroom, kitchen, garage, and basement. Auto-Test 20 Amp GFCI Outlet: To ensure continuous protection against ground faults, the GFCI outlet conducts automatic self-tests.The device detects and trips on ground faults within 1/40 of a second GFI Outlets: Provides protection from electrical shocks that might occur from faulty appliances in damp locations.Tamper-Resistant, Slim GFCI Outlet: Tamper-resistant shutter safety mechanism blocks access to power unless a plug is inserted, providing an extra layer of safety in households with children.
20amp gfci outlet code#

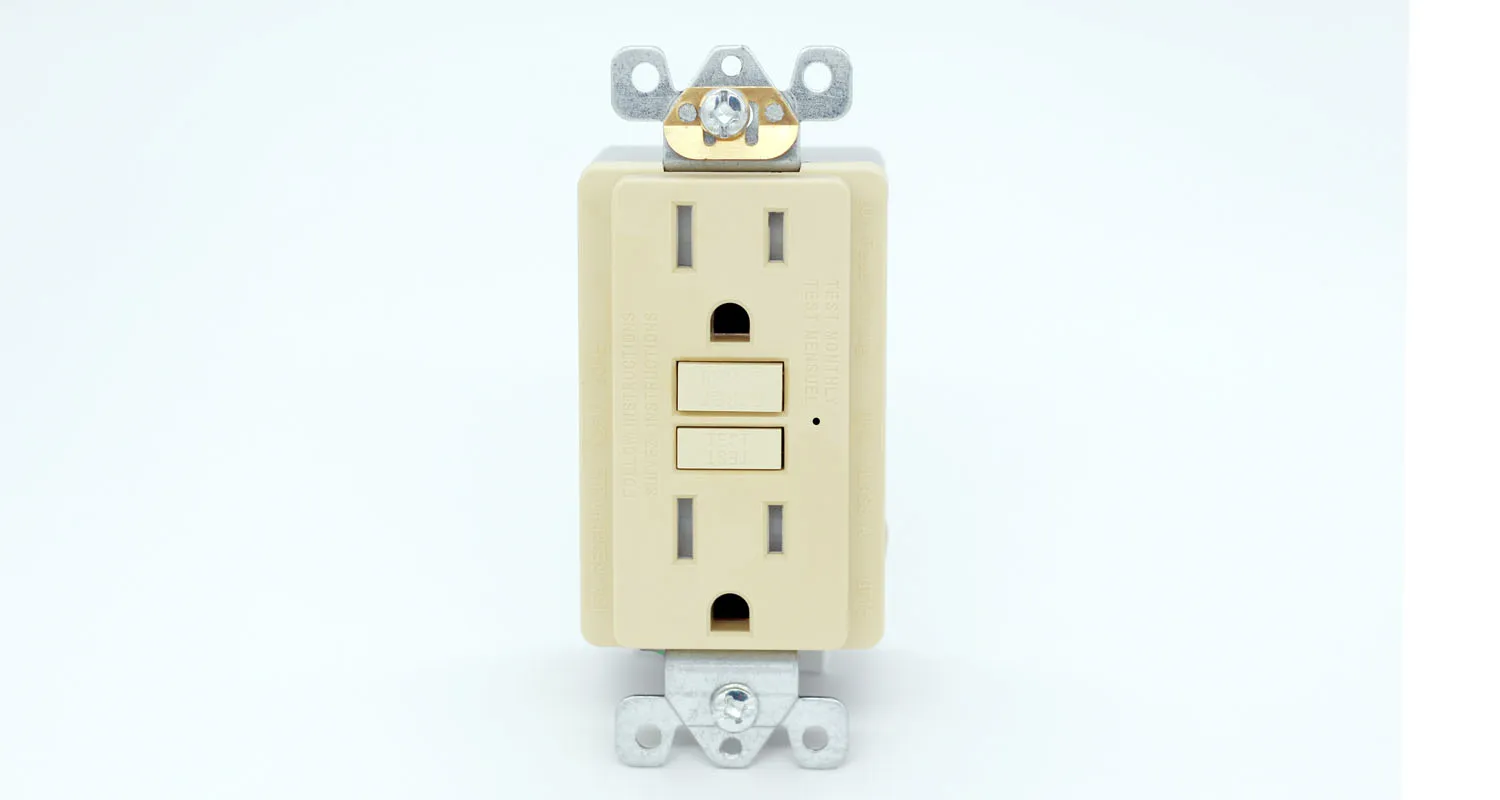

Compliant with National Electric Code (NEC) requirements. Specifications: Electrical rating 20A/125V/2500W.ETL listed. Tamper-resistant shutter safety mechanism blocks access to power unless a plug is inserted, providing an extra layer of safety in households with children. Test and reset buttons match the device's face color to blend in seamlessly. Slimmer, modern design for easier and quicker installation in electrical boxes. The green indicator LED light turns off if the outlet is not receiving power, is broken, or if it is at end-of-life. Once connected to power, this GFCI receptacle automatically self-tests every 2-1/2 hours. The Faith GLS-20ATR self-testing ground fault circuit interrupter outlet provides continuous protection from ground faults, disconnecting power in 1/40 of a second if a dangerous condition is detected.
